The Challenge
A vehicle integrity scanning system was being deployed at a remote gatehouse to capture and analyse images of trucks entering and leaving the site.

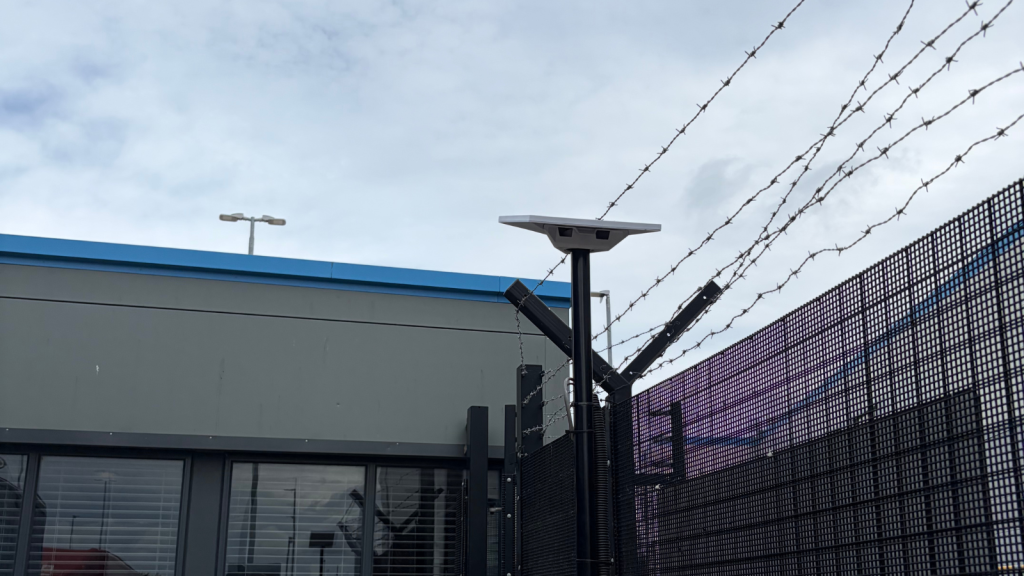

The system incorporated pole-mounted cameras, dedicated LED lighting and an onsite image-processing server. However, suitable internet connectivity was not available at the gatehouse.
A solution was required that could be deployed quickly, without waiting for new broadband or leased-line infrastructure, while integrating with the existing scanning equipment.
Key requirements included:
🔹 Reliable connectivity for the onsite server
🔹 Rapid deployment at a remote location
🔹 Integration with the scanning infrastructure
🔹 Independent connectivity without relying on the wider site network
The Solution

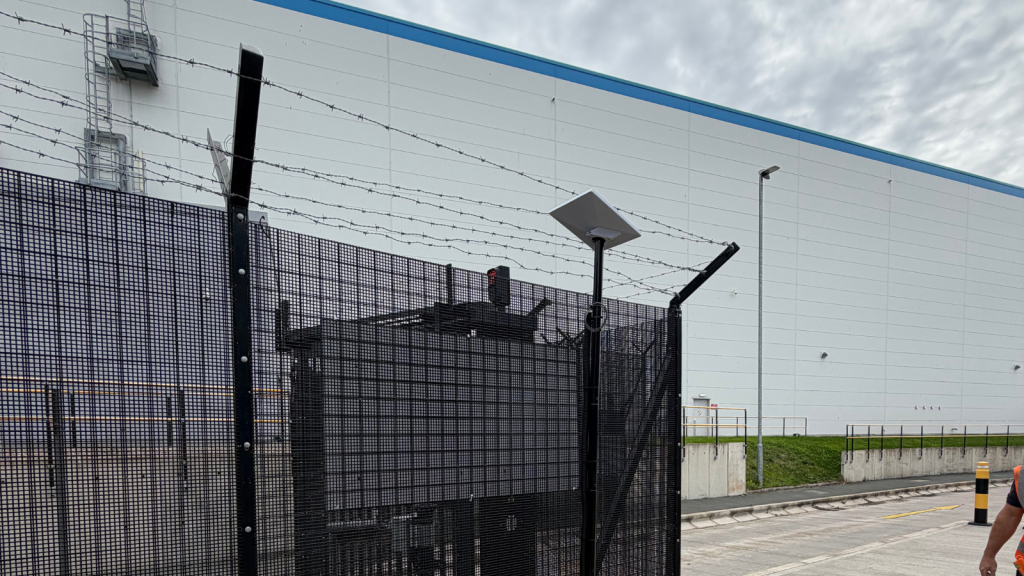

The installation incorporated four pole-mounted scanning points positioned across the site’s check-in and check-out lanes.
Each pole featured three cameras alongside dedicated LED lighting, providing consistent illumination and multiple viewing angles as vehicles passed through the scanning area.

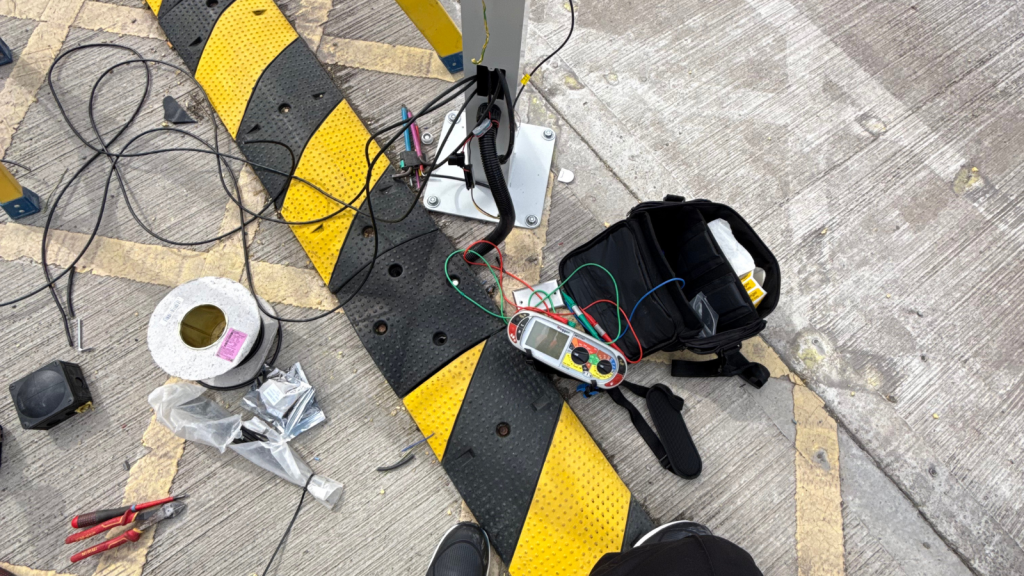

The electrical installation and supporting data cabling infrastructure provided the foundation for connecting the cameras, lighting, onsite server and network equipment.
The wider system incorporated:
🔹 4 pole-mounted scanning points
🔹 3 cameras per pole – 12 cameras in total
🔹 Dedicated LED lighting to provide consistent illumination for vehicle image capture
🔹 2 scanning points on the check-in lane
🔹 2 scanning points on the check-out lane
🔹 Onsite image-processing server
As trucks passed through the gatehouse, multiple images were captured from different positions and transferred to the onsite server for analysis, helping identify potential changes or damage to vehicles.
The Result
The completed installation provided an integrated vehicle integrity scanning system capable of capturing and processing vehicle imagery across both entry and exit lanes.
| Result | Outcome |
|---|---|
|
Rapid Deployment |
Connectivity delivered without waiting for a fixed-line installation |
|
12 Cameras Supported |
Four scanning points provided comprehensive vehicle image capture |
|
Entry & Exit Coverage |
Scanning supported across check-in and check-out lanes |
|
Independent Connectivity |
Dedicated connection without relying on the wider site network |
|
Full Integration |
Cameras, server, networking and connectivity operated as one system |
